Description

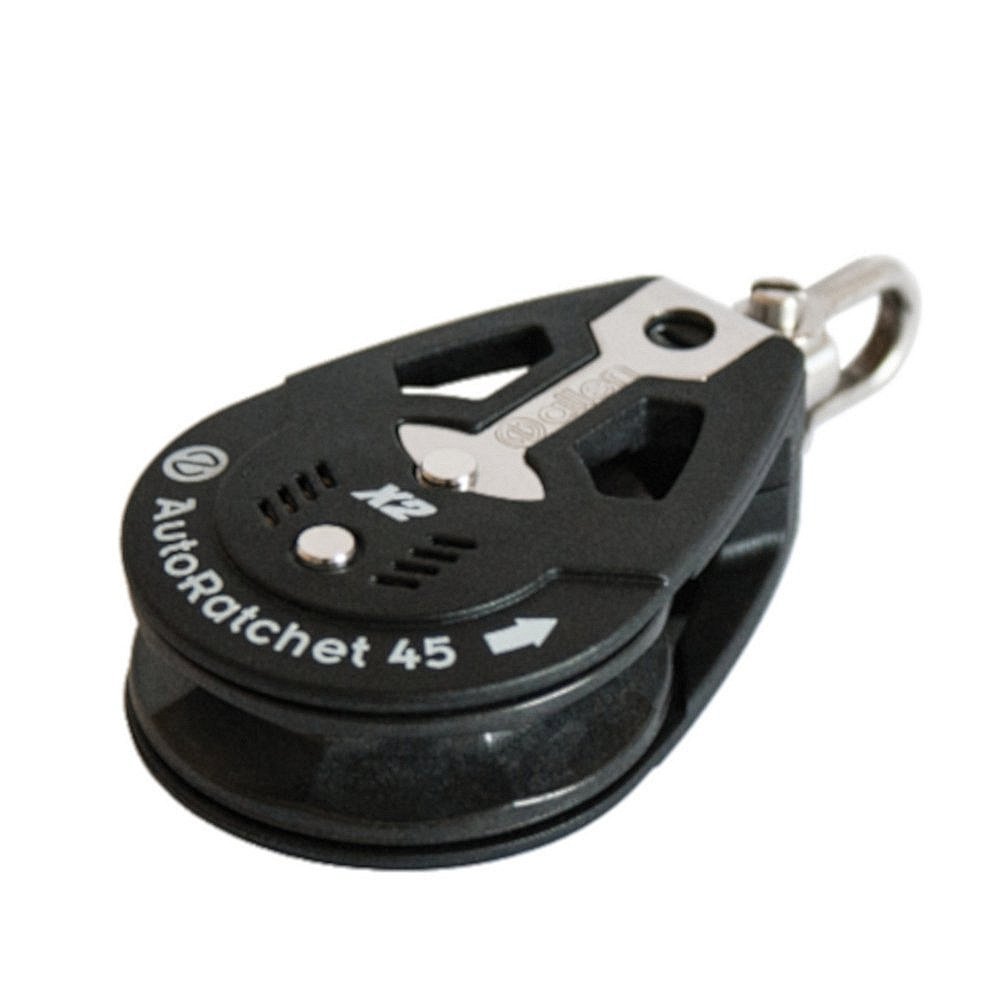

The “X2” pawl system incorporates two pawls into the mechanism for the ratchet block allows the load to be evenly shared between both pawls, this allows the block to withstand higher working loads while also increasing both the reliability and longevity of the block when compared to the older AutoRatchet designs.
A technical drawing of the Ratchet block A2345 can be downloaded here
Block Properties
| Breaking load | 280 kg |
| Length/span | 90 mm |
| Max.line dia | 8 mm |
| Max. working load | 140 kg |
| Shackle pin | 4 mm |
| Sheave size | 45 mm |
| Trigger load | 10 kg |
| Weight | 56 g |
