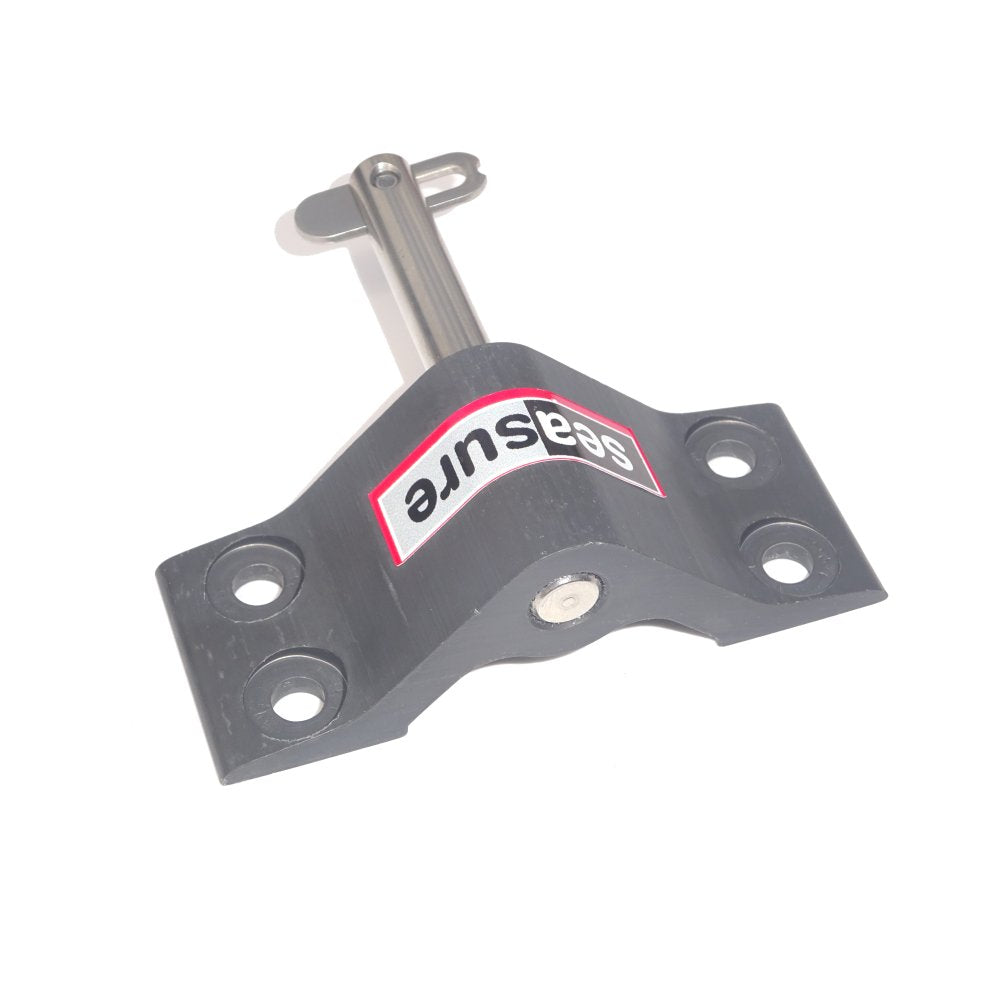

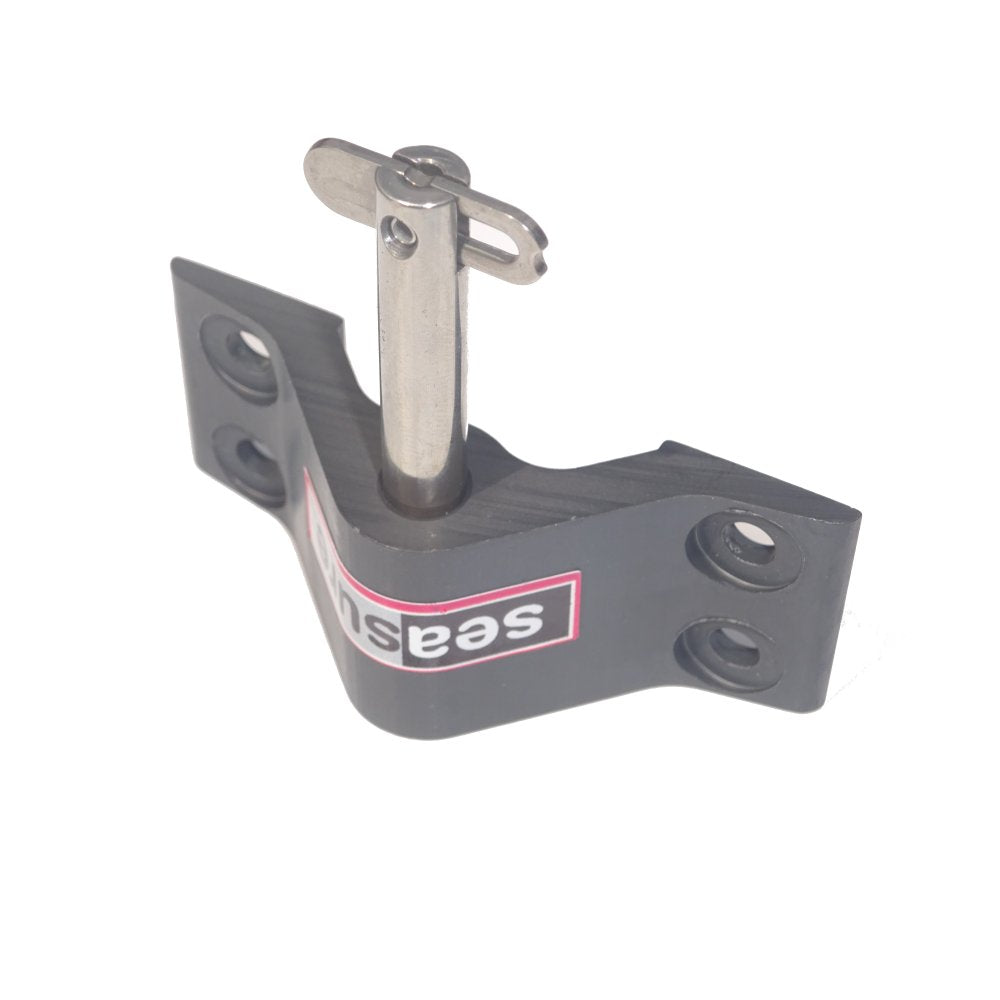

Seasure 18.14DL 5mm Bottom Transom Pintle - 4 Hole Mounting, Drop Nose Pin
Earn [points_amount] when you buy this item.
If currently in stock:
- Supersaver Delivery receive by: May 28 - Jun 01
-
Order before 3pm (GMT) for Next Day Delivery
The 4 hole transom mounted pintle is one of the most common and used transom fittings around. The fitting has 4no. 5mm countersunk fixing holes for attaching to the back of the boat. The pin is made from 316 stainless steel and has a drop nose end that can be locked to keep your rudder or rudder stock attached safely to the back of the boat. it is made to fit snugly with our gudgeon ranges. Packing pieces are available to increase the distance that the fitting sits off the back of the boat. The part number for this is 18.54
Seasure Bottom Transom Pintle Properties 18.14DL
| Number of fixing holes | 4 no. |
|---|---|
| Hole size | 5 mm |
| Overall width | 75.8 mm |
| Overall height | 29 mm |
| Hole spacing horizontal | 55.5 mm |
| Hole spacing vertical | 16 mm |
| Pin length | 42 mm |
| Pin diameter | 8 mm |
| Weight | 0.01 kg |
Learn more about caring for your gear on our product care page here
