Allen A..77 Small Alloy Cam Cleat
If currently in stock:
- Supersaver Delivery receive by: Nov 29 - Dec 03
-
Order before 3pm (GMT) for Next Day Delivery

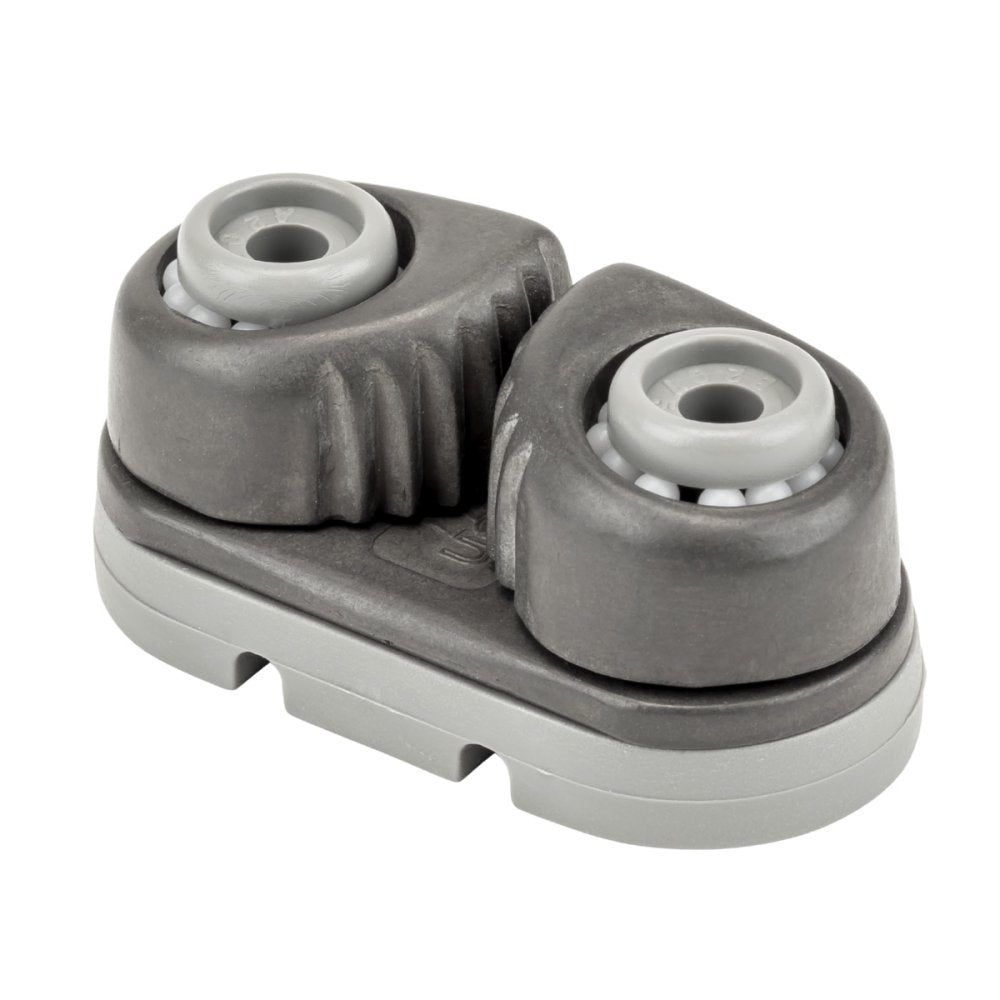

The Allen A..77 Small Ball Bearing Cam Cleat - The jaw profile is optimised for rope entry and exit reducing wear on rope. Ball bearings and double coil springs gives a super smooth cam action, allowing for a consistent feel every time the rope is cleated.
Features die-cast aluminium jaws and base, which results in a higher working load and a more durable finish when compared to the Allenite version.
These design features make the aluminium cam cleat perfect for applications which may have a fast-running control line, such as a spinnaker halyard, mainsheet or jib sheet.
An Engineering drawing of the Allen A..77 Cam Cleat can be found HERE
Allen A..77 Cam Cleat Properties
| Number of Base Fixing Holes | 2 no. |
|---|---|
| Base Fixing Hole Spacing | 28 mm |
| Overall Height | 22 mm |
| Maximum Line Dia. | 2-6mm |
| Maximum Working Load | 100 kg |
| Fixing Hole diameter | 4 mm |
| Weight | 29 grams |
Learn more about caring for your gear on our product care page here
