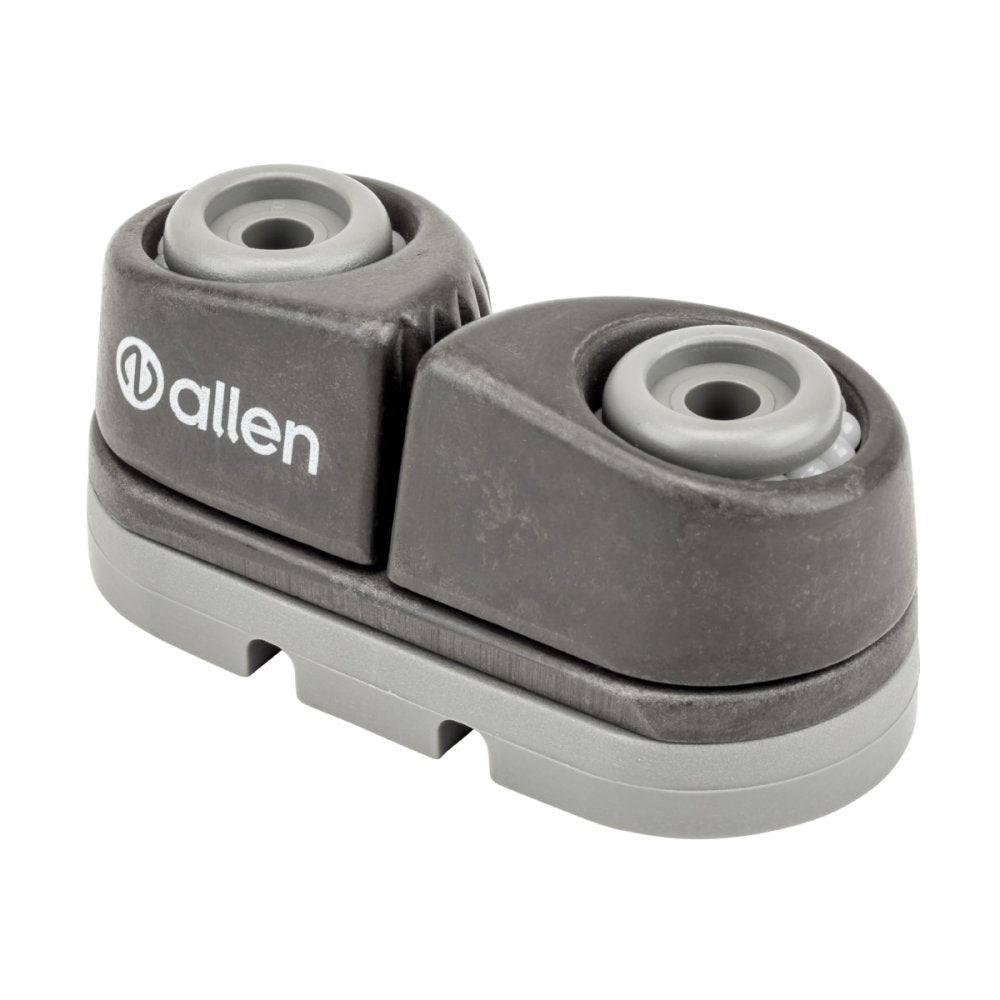

Allen A..76 Medium Alloy Cam Cleat
If currently in stock:
- Supersaver Delivery receive by: Nov 29 - Dec 03
-
Order before 3pm (GMT) for Next Day Delivery
The Allen A..76 Medium Ball Bearing Cam Cleat – The jaw profile is optimised for rope entry and exit reducing wear on rope. Ball bearings and double coil springs gives a super smooth cam action, allowing for a consistent feel every time the rope is cleated.
Features die-cast aluminium jaws and base, which results in a higher working load and a more durable finish when compared to the Allenite version.
These design features make the aluminium cam cleat perfect for applications which may have a fast-running control line, such as a spinnaker halyard, mainsheet or jib sheet.
An Engineering drawing of the A..76 cleat can be found HERE
Allen A..76 Cam Cleat Properties
| Number of Base Fixing Holes | 2 no. |
|---|---|
| Base Fixing Hole Spacing | 38 mm |
| Overall Height | 29 mm |
| Maximum Line Dia. | 4-10 mm |
| Maximum Working Load | 150 kg |
| Fixing Hole diameter | 5 mm |
| Weight | 63 grams |
