Ronstan RF35302 Series 30 Orbit Triple Block
If currently in stock:
- Supersaver Delivery receive by: Dec 01 - Dec 05
-
Order before 3pm (GMT) for Next Day Delivery

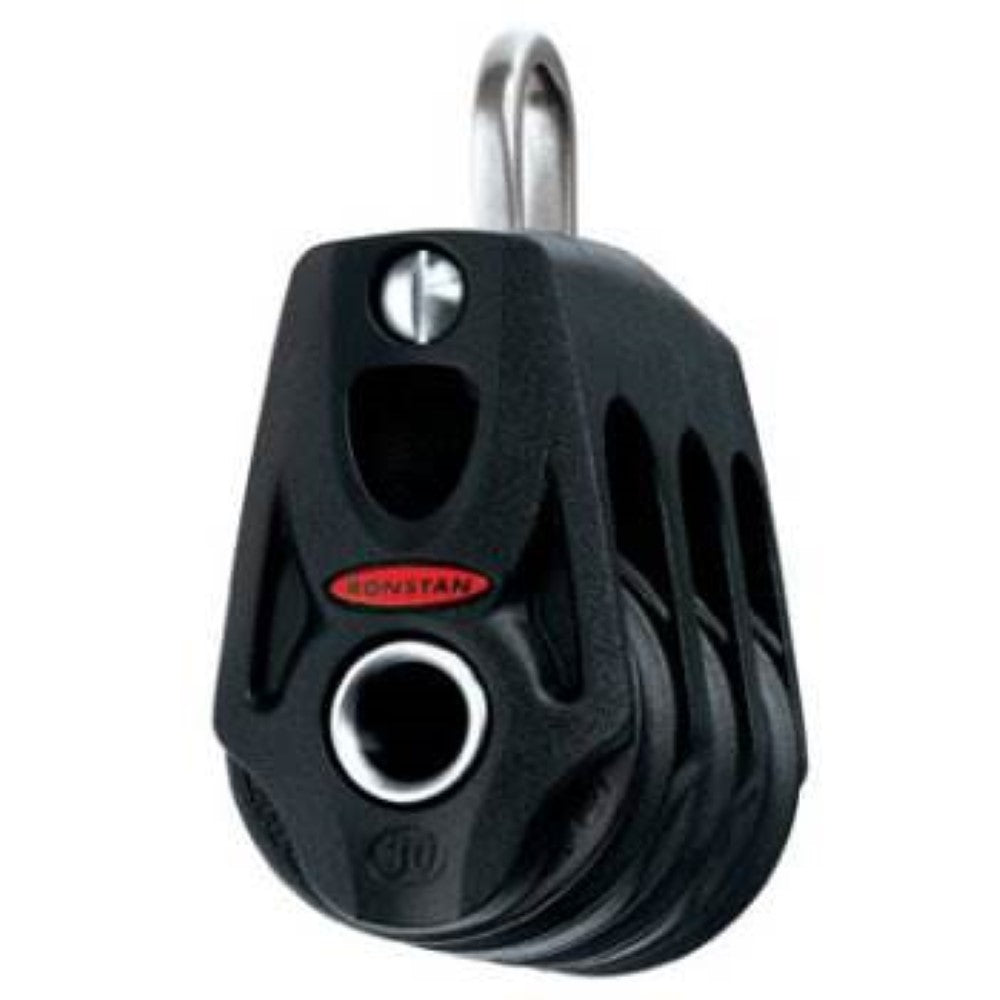

Ronstan (RF35302) Series 30 Orbit Triple Block.
Ball Bearing Orbit Blocks™ boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options. Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fibre-reinforced composites in the block head, cleat arms and beckets.
Note: This block can take a rope dyneema head (RF9003-07) by removing the pin that secures the shackle head.
Block Properties
| Sheave diameter | 30 mm |
| Maximum rope diameter | 8 mm |
| Maximum working load | 550 kg |
| Breaking load | 1100 kg |
| Weight | 79 g |
| Width | 50.5 mm |
| Length | 67 mm |
| Shackle head length | 17 mm |
