Description

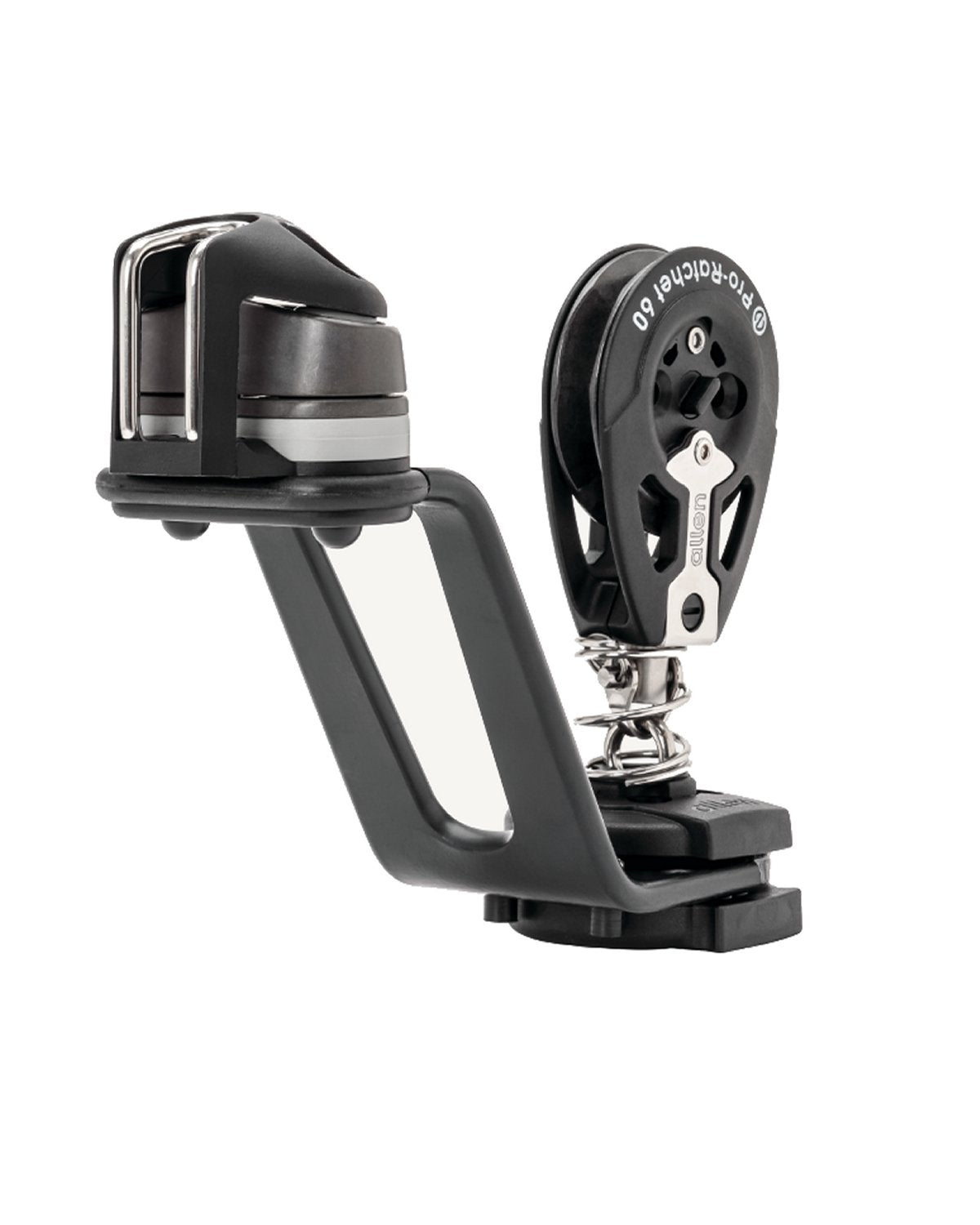

The Allen A5166 Standard height mainsheet jammer with a 60mm Pro-Ratchet Block. (As used on the RS500 as an example)
The arm can be set to rotate in 180, 220 or 360 degrees by adjusting the stopper pins on the underside of the arm. The arm swivel features two rows of ball bearings to ensure a super smooth rotation of the jammer arm.
Includes A..76-496 aluminium cam cleat with mega pro-lead.
| Fixing Hole Centres | 19.5 x 19.5 mm |
| Fixing Hole Diameter | 5 mm |
| Maximum Working Load Mm | 600 kg |
| Weight | 368 g |
| Allen part no. | A5166STANDARD |
For more dimensions, please see this drawing HERE
